【Keywords】: dedicated cleaning agent for electron‑beam welding, welding defect rate, pre‑weld cleaning, welding‑grade cleaning agent, weld‑bead discoloration
【Abstract】: Electron‑beam welding is performed under vacuum conditions. Any oil contamination or cleaning‑agent residues on workpiece surfaces will outgas under high temperature, inducing weld porosity and spatter and raising welding defect rates. LE‑2000, a pre‑weld cleaning agent mainly composed of organic alkali and specially developed for electron‑beam welding, represents an innovative solution for lowering welding reject rates.
Why Pre‑Weld Cleaning Determines Electron‑Beam‑Welding Quality
Vacuum‑environment sensitivity: Electron‑beam welding takes place inside vacuum chambers. Oil stains, cutting fluid and cleaning‑agent residues on workpieces decompose and outgas upon heating, directly giving rise to weld porosity, spatter and poor weld formation.
Hidden quality risks: Improper cleaning itself may introduce defects. If cleaning agents contain high‑boiling‑point organic substances or inorganic‑salt residues, workpieces may look clean visually, yet residues still vaporize and outgas inside vacuum chambers.
Electrode wear: Certain cleaning‑agent residues accelerate electrode consumption of welding equipment, increasing maintenance costs and downtime.
Weld‑bead appearance: Inadequate cleaning causes discoloration around weld beads and increases post‑processing workload such as grinding.
Therefore, pre‑weld cleaning agents for electron‑beam welding shall meet multiple requirements simultaneously: powerful degreasing capacity, welding‑compatible composition, no negative impact on electrode service life and minimal weld‑bead discoloration.

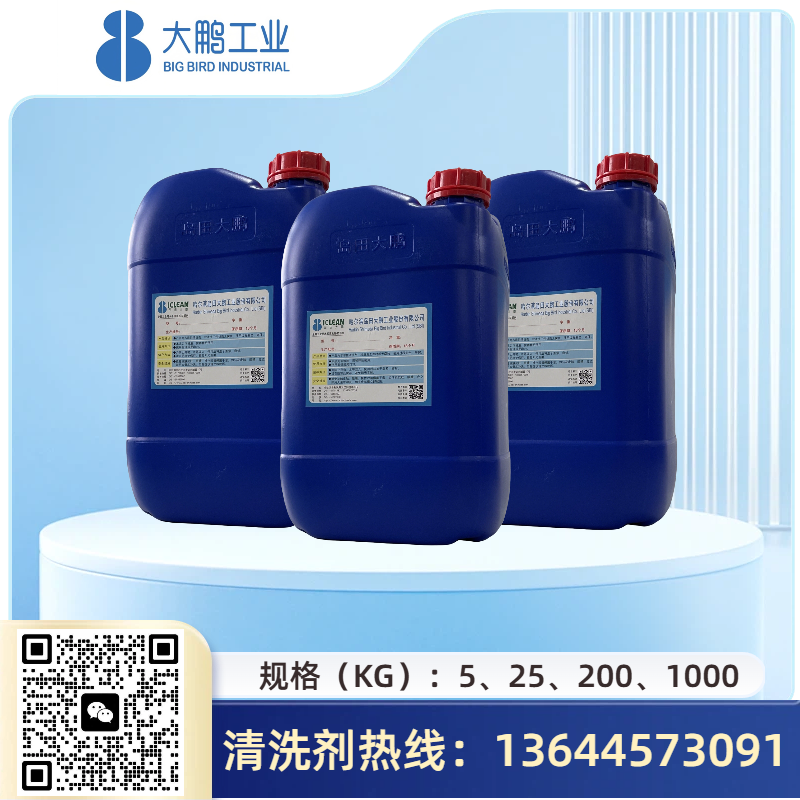

Core Features of LE‑2000 Dedicated Cleaning Agent for Electron‑Beam Welding
LE‑2000 is a pre‑weld specialty cleaning agent based on organic alkali, tailor‑made for electron‑beam‑welding processes:
Reduced welding defect rate: Fundamentally mitigates higher reject rates caused by insufficient cleaning or incompatible cleaning‑agent chemistry, acting as an innovative pre‑weld cleaning grade.
Strong degreasing performance: Effectively removes machining oil, cutting fluid and other surface contaminants on pre‑weld workpieces and delivers clean substrate surfaces for electron‑beam welding.
Electrode‑friendly: Exerts no adverse influence on electrode service life, cutting welding‑equipment maintenance costs and improving equipment utilization rate.
Superior weld‑bead appearance: Minimizes discoloration surrounding weld beads, lowers grinding‑related post‑processing workload and boosts finished‑product yield.
Safe weakly‑alkaline formula: Mainly formulated with organic alkali; high operational safety for operators.
Applicable scenarios: Pre‑weld component cleaning for electron‑beam welding; pre‑weld treatment for transmission gears, drive shafts and other welded assemblies; pre‑weld cleaning for aerospace and precision‑mechanical‑electrical products.
Process Recommendations for Pre‑Electron‑Beam‑Welding Cleaning
Adjust working concentration within 3%‑10%; prepare initial bath at 5%.
Guarantee thorough pre‑weld cleaning to eliminate oil and cutting‑fluid residues.
Implement sufficient rinsing after cleaning followed by compressed‑air blow‑drying to ensure fully dry and residue‑free workpiece surfaces.
Deploy ultrasonic cleaning for complex‑structured hard‑to‑clean welded parts to secure pre‑weld cleanliness.
Cleaned and blow‑dried workpieces are ready for electron‑beam welding, featuring stable welding quality and limited weld‑bead discoloration.
FAQ
Q: Why must dedicated cleaning agents be adopted prior to electron‑beam welding?
A: Electron‑beam welding runs under vacuum. Any oil or cleaning‑agent residues on workpieces outgas under high temperature and trigger weld porosity, spatter and other defects. Conventional cleaning agents have not undergone welding‑compatibility validation; residues may persist even if surfaces appear visually clean.
Q: How does LE‑2000 lower welding defect rates?
A: LE‑2000 adopts organic‑alkali‑based formula with strong degreasing power to thoroughly eliminate pre‑weld contaminants. Its chemistry is optimized for vacuum welding; no harmful residues remain after cleaning and blow‑drying, thus reducing porosity and spatter originating from cleaning‑process sources.
Q: Will LE‑2000 shorten electrode service life?
A: No. LE‑2000 is purpose‑designed and imposes no negative effect on electrodes. It protects electron‑beam‑welding equipment and cuts maintenance costs and production downtime.
Q: Does LE‑2000 cause discoloration around weld beads?
A: LE‑2000 keeps weld‑bead peripheral discoloration at a low level. Welded workpieces achieve favorable surface quality, decreasing grinding workload and improving production efficiency and finished‑part yield.
Q: Is LE‑2000 safe for human operators?
A: Yes. As a weakly‑alkaline product dominated by organic alkali, LE‑2000 provides higher operational safety compared with strong‑alkaline or solvent‑based cleaning agents.
