Applicable industry: Commercial vehicles

Corresponding workpiece: Diesel engine cylinder block

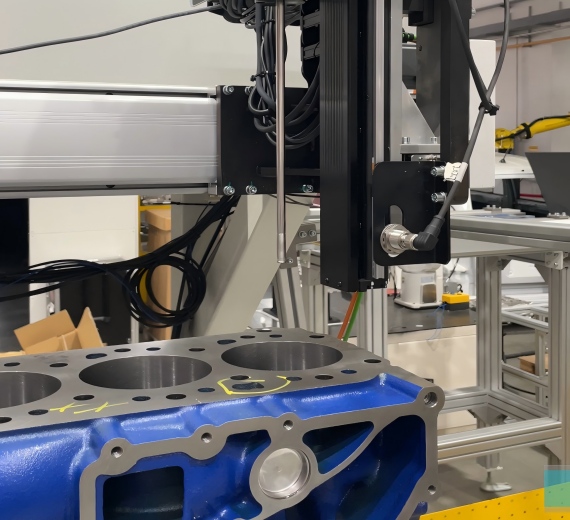

Equipment description: This equipment is designed for the detection of inner wall defects in diesel engine cylinder blocks. It can detect inner wall defects such as scratches, sand holes, and dents. Defects with contour dimensions greater than 0.2mm can be detected, and the detection accuracy rate is 99%.

Equipment function: Detection of defects on the inner wall of holes

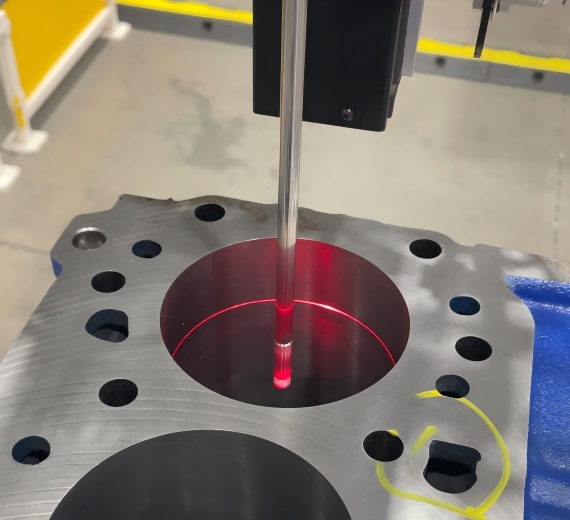

Algorithmic advantages: It can perform non-destructive and non-contact inspection, can inspect areas that cannot be visually inspected, OK/NG determination can be automated by setting defect judgment standards, as it uses laser to illuminate the workpiece and capture its reflected light, it is almost unaffected by external light sources, and the inspection data can retain defect information, thus it can be fed back to the manufacturing process.

Equipment Specifications

Production cycle: 2.5 - 10 seconds per hole, depending on the size.

Control system: PLC + PC

The detection range of the processed hole diameter is: φ4 - φ100mm, and the depth: customizable, usually less than 200mm.

*The above product parameters are for reference only. For detailed information, please call for consultation.
