Applicable industries: commercial vehicles, passenger vehicles (including new energy vehicles), and other fields.

Corresponding part: Brake caliper

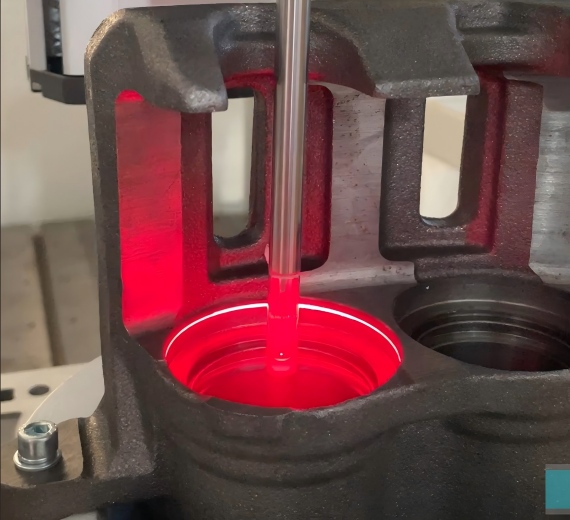

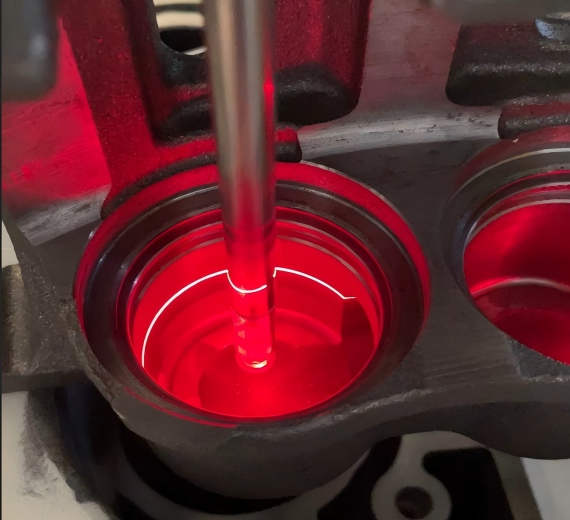

Equipment description: This equipment is designed for inspecting the inner walls of holes in automotive calipers, capable of detecting defects such as scratches, sand holes, and dents. It can identify defects with contour dimensions larger than 0.2mm, with a detection accuracy rate of 99%.

Equipment Function: Detection of Defects on the Inner Wall of Holes

Algorithmic advantages: It can perform non-destructive and non-contact inspection, and can inspect areas that cannot be visually inspected. The OK/NG determination can be automated by setting defect judgment standards. Since it uses laser to illuminate the workpiece and capture its reflected light, it is almost unaffected by external light sources. The inspection data can retain defect information, thus it can be fed back to the manufacturing process.

Equipment Specifications

Production cycle: 2.5 - 10 seconds per hole, depending on the size.

Control system: PLC + PC

The range of diameters for the processed holes to be inspected is: φ4 - φ100mm, and the depth can be customized, usually less than 200mm.

*The above product parameters are for reference only. For detailed information, please call for consultation.
