Final inspection of excavator engine assembly

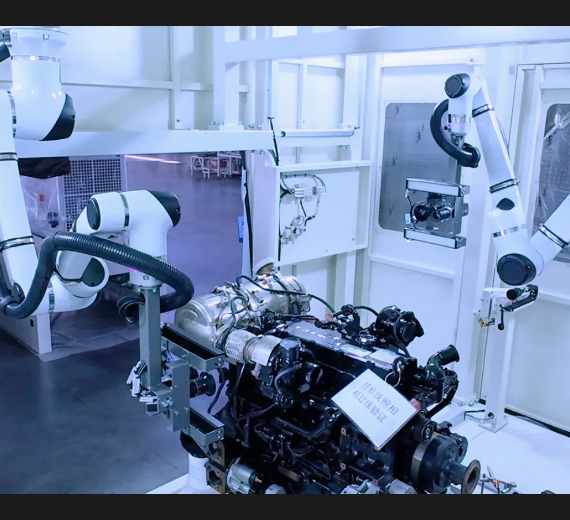

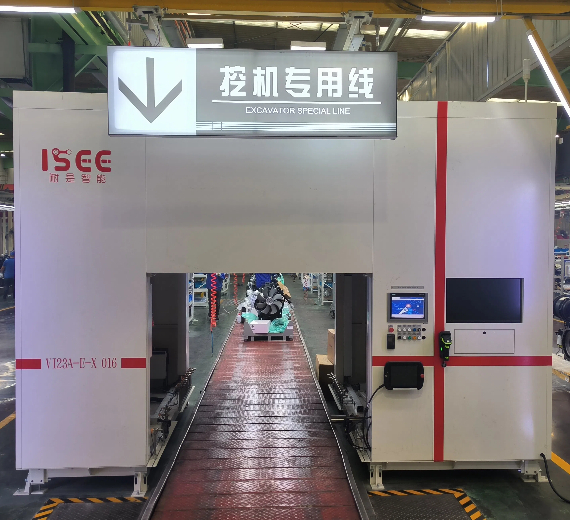

Equipment introduction: The equipment is used to complete the photo-taking of engines upon their entry into the warehouse, identify and remind of misassembly and omission at designated parts, achieve part number comparison, establish entry archives, and support query and traceability operations.

Applicable industries: commercial vehicles, passenger vehicles (including new energy vehicles), and other fields.

Corresponding parts: diesel engine assemblies, gasoline engine assemblies, transmission assemblies, and other automotive assembly units

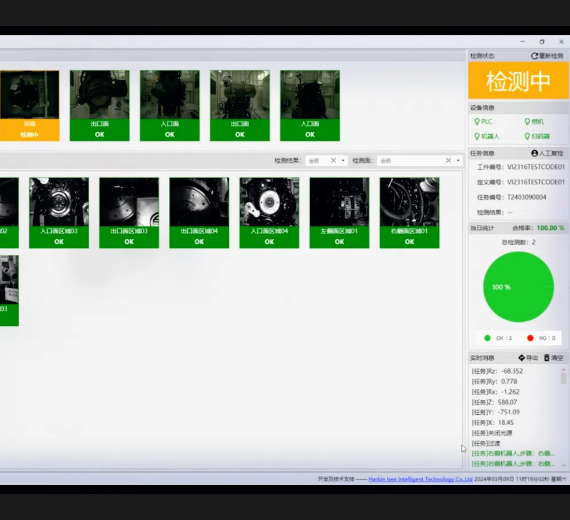

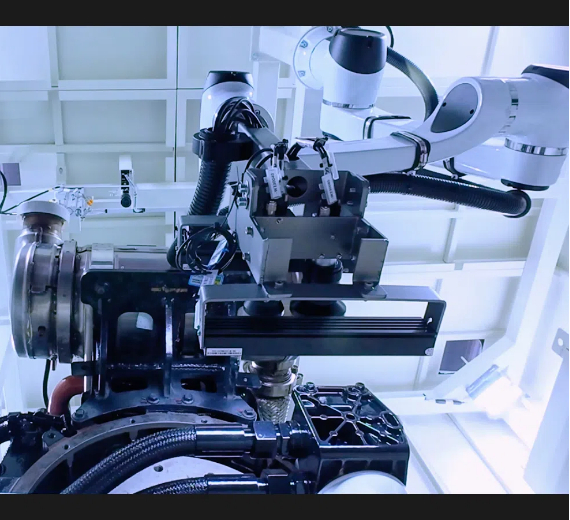

Process description: Code reading, machine vision inspection (component inspection & overall photo retention), manual re-inspection, traceability, and analysis of wrong and missing installation data.

Equipment Specifications

Production cycle: 60 seconds (customized according to workpiece conditions)

Industrial camera: 2000W pixels

Light source: Super large size high-brightness light source / high-brightness strip light combination

Accuracy rate: 99%

Robot: FANUC, ABB, KUKA, Yaskawa, Siasun, etc.

Control system: Siemens, Mitsubishi, etc.

*The above product parameters are for reference only. For detailed information, please call for consultation.
