Specification: 11.23m × 5.04m × 3.14m (customizable to non-standard specifications)

Applicable industries: commercial vehicles, passenger vehicles (including new energy vehicles), and other fields.

Corresponding parts: Engine assembly, transmission assembly, new energy power assembly

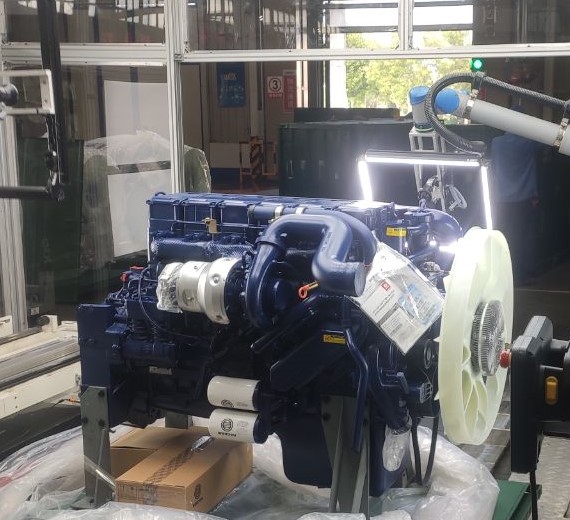

Equipment description: Consistency of engine nameplate number information and barcode; appearance issues of oil filter and fuel filter; misinstallation or omission of intercooler connecting pipe and intake pipe; whether flywheel and flywheel housing bolts are missing; whether the observation hole cover plate under the flywheel housing is missing; whether protective plugs are missing; whether nitrogen and oxygen sensors are bundled; whether parts box is missing and unidentifiable quantity; whether water pump pipe joint is missing; whether the direction of water pump outlet is correct.

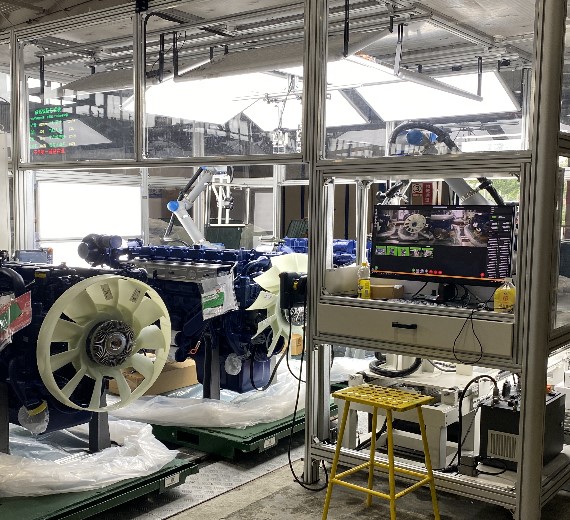

Equipment functions: Code reading, machine vision inspection (deep learning), traceability, data analysis, PDA supplementary entry, remote viewing

Equipment Specifications

Production cycle time: 70 seconds per piece (customizable upon request)

Industrial cameras: Each robot is equipped with two 20-megapixel cameras (for retention and inspection).

Light source: Super large size high-brightness light source, strip light source

Control system: Siemens, Mitsubishi, Advantech industrial control computer

Ground rail: Pneumatic, servo (for expanded detection range)

*The above product parameters are for reference only. For detailed information, please call for consultation.
