Specification: 5.56m × 3.41m × 4.09m (customizable to non-standard specifications)

Applicable industries: Refrigerators, air conditioners and other home appliance fields.

Corresponding workpiece: Electrical products represented by refrigerator doors

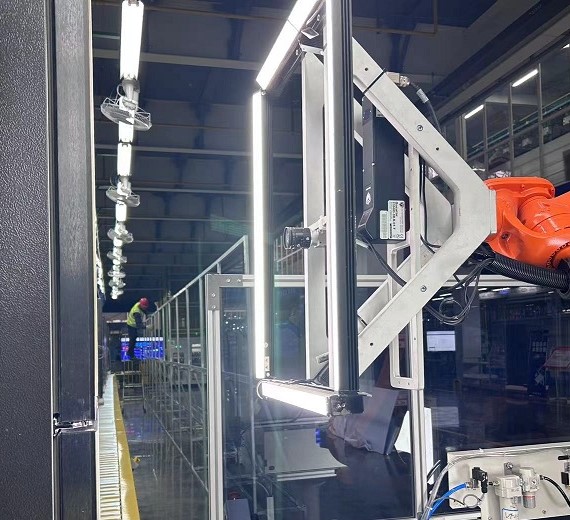

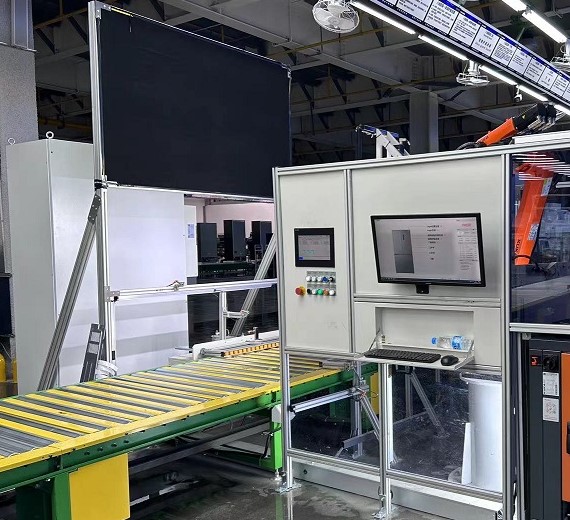

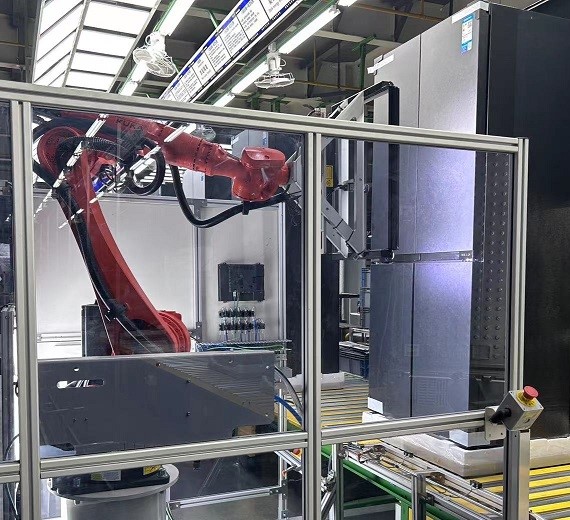

Equipment description: Detect color difference of refrigerator doors, parallelism and gap between upper and lower doors, flatness, and correctness of printed matter.

Equipment functions: Code reading, machine vision inspection, manual re-inspection, traceability, defect data analysis

Equipment Specifications

Production cycle time: 10 seconds (customizable upon request)

Industrial camera: 20-megapixel

Laser profilometer: X-direction resolution 0.15mm

Light Source: Industrial Light Source

Control system: industrial control computer, PLC

*The above product parameters are for reference only. For detailed information, please call for consultation.
