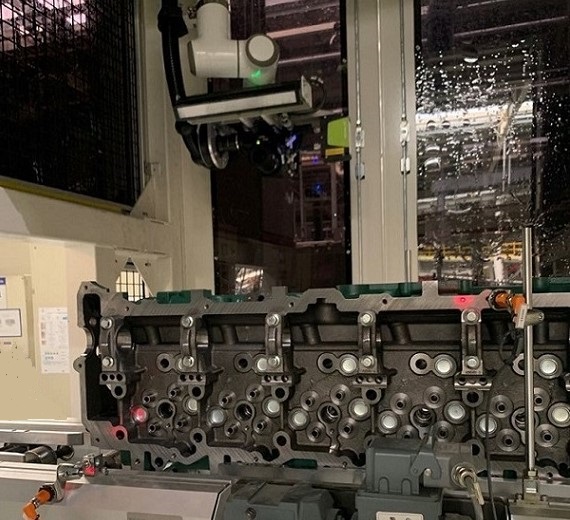

Defect inspection for finished cylinder heads on the machining line

Applicable industries: Commercial vehicles, passenger vehicles (including new energy vehicles), and other fields

Corresponding parts: Components for new energy power systems, components for diesel/gasoline vehicle power systems

Equipment Description:

Inspect the sealing surface of the cylinder head cover for defects such as scratches, protrusions, depressions, cracks, and dents.

Inspect the support surface of the cylinder head bolt for defects such as scratches, cracks, and dents on the top and bottom surfaces.

Cylinder head bottom surface: Inspect for scratches, cracks, dents and other defects on the top and bottom surfaces and the sealing band area.

Equipment functions: Code reading, machine vision inspection (deep learning), traceability, data analysis, remote viewing

Equipment Specifications

Production cycle time: 3.5 minutes (customized according to the workpiece conditions)

Industrial camera: 8K line scan camera X1

12-megapixel area array camera X1

Light sources: Line scan light source X1, Ring light source X1

Control system: Advantech industrial control computer

Collaborative robots: AILIT, Siasun, HAN's, JAKA

*The above product parameters are for reference only. For detailed information, please call for consultation.
