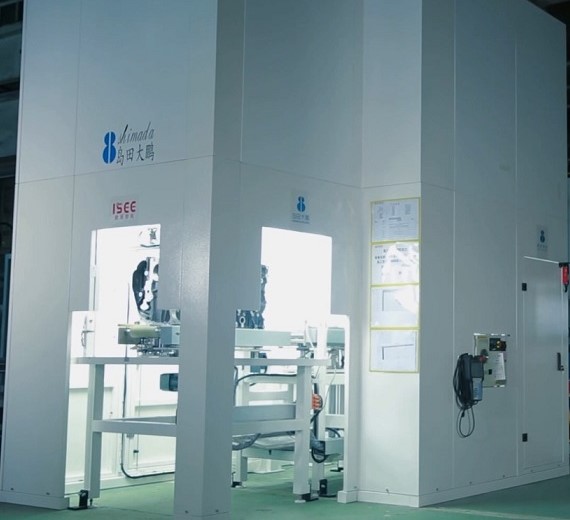

Specification: 5.25m × 2.58m × 4.08m (customizable to non-standard specifications)

Applicable industries: commercial vehicles, passenger vehicles (including new energy vehicles), and other fields.

Corresponding workpieces: diesel engine blocks, cylinder heads, gasoline engine blocks, cylinder heads, housings, and various other automotive parts.

Equipment type: Roller conveyor, robot type

Main functions: Batch detection of surface quality defects on workpieces, such as scratches, dents, sand holes, shrinkage cavities, missing corners, etc. The detection rate of defects with a size contour greater than 0.5mm exceeds 99.9%.

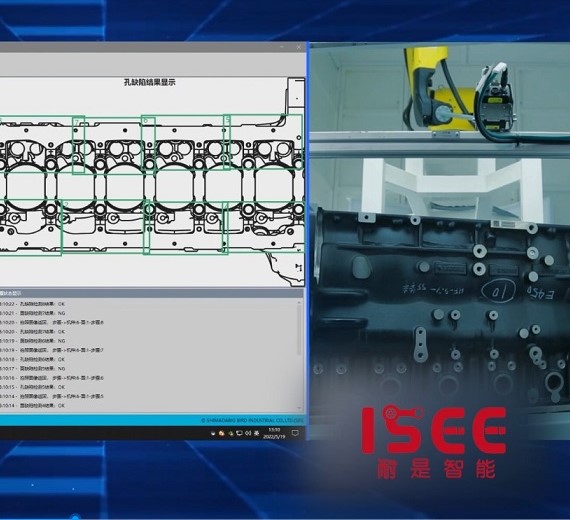

Equipment functions: Code reading, machine vision inspection, manual re-inspection, traceability, defect data analysis

Equipment Specifications

Production cycle time: 36S - 240S per piece (customizable upon request)

Industrial camera: 20-megapixel

Light source: Super large size high-brightness light source

Control system: Siemens, Mitsubishi, Advantech industrial control computer

*The above product parameters are for reference only. For detailed information, please call for consultation.
