Specification: 5.25m × 2.58m × 4.08m (Customization available)

Applicable industries: commercial vehicles, passenger vehicles (including new energy vehicles), and other fields.

Corresponding workpiece: Engine cylinder head

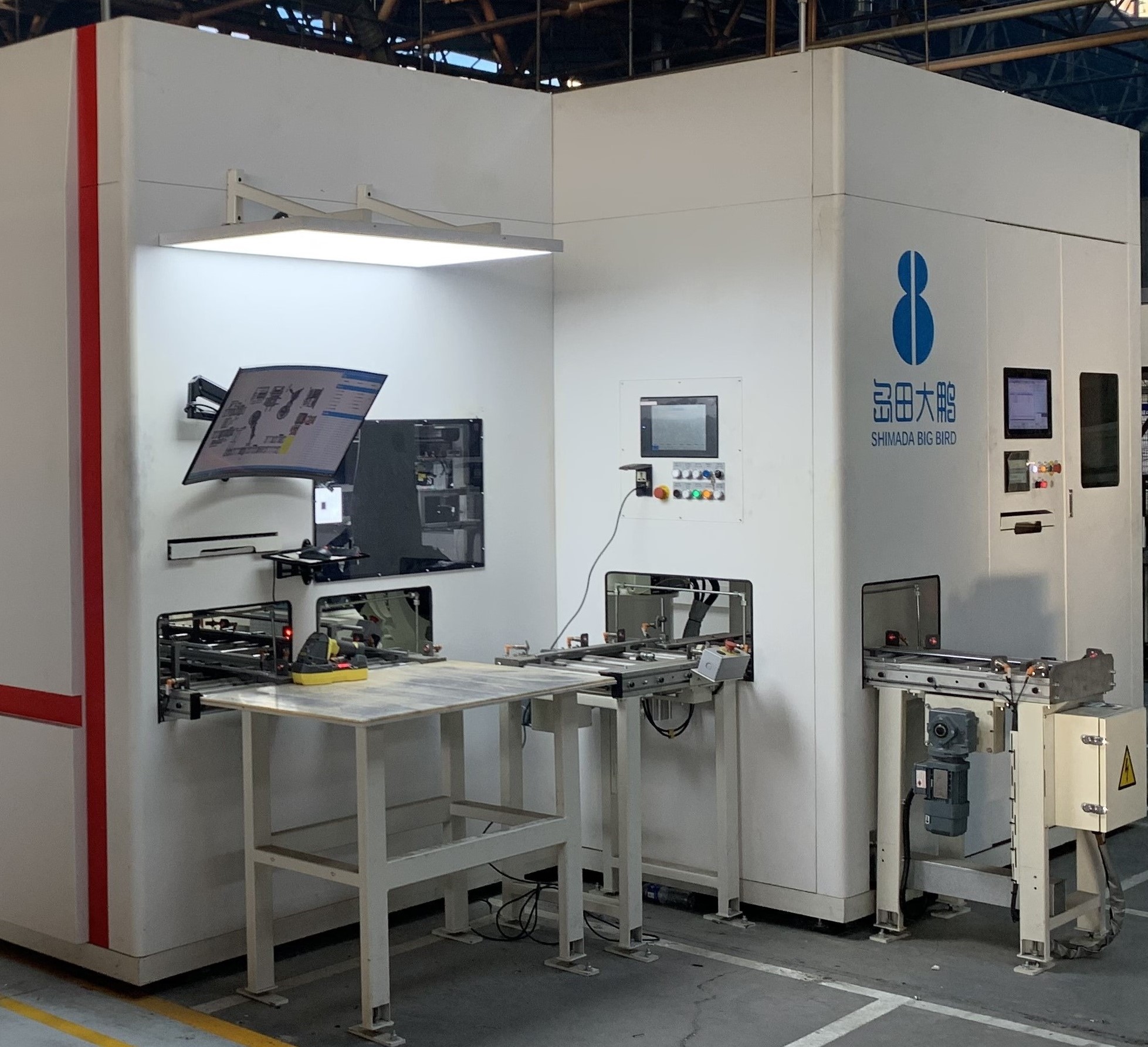

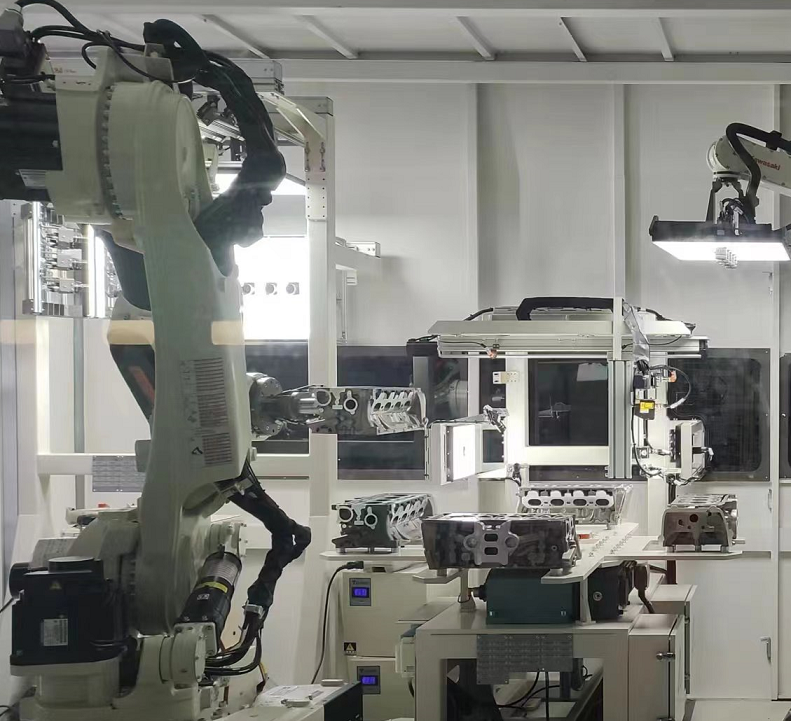

Equipment description: Automatic identification of multi-variety cylinder heads, coding, key dimension inspection, defect detection, qualified marking, information binding and storage, etc. It replaces manual inspection, enhances the degree of production automation, and reduces labor costs and the rate of missed inspections.

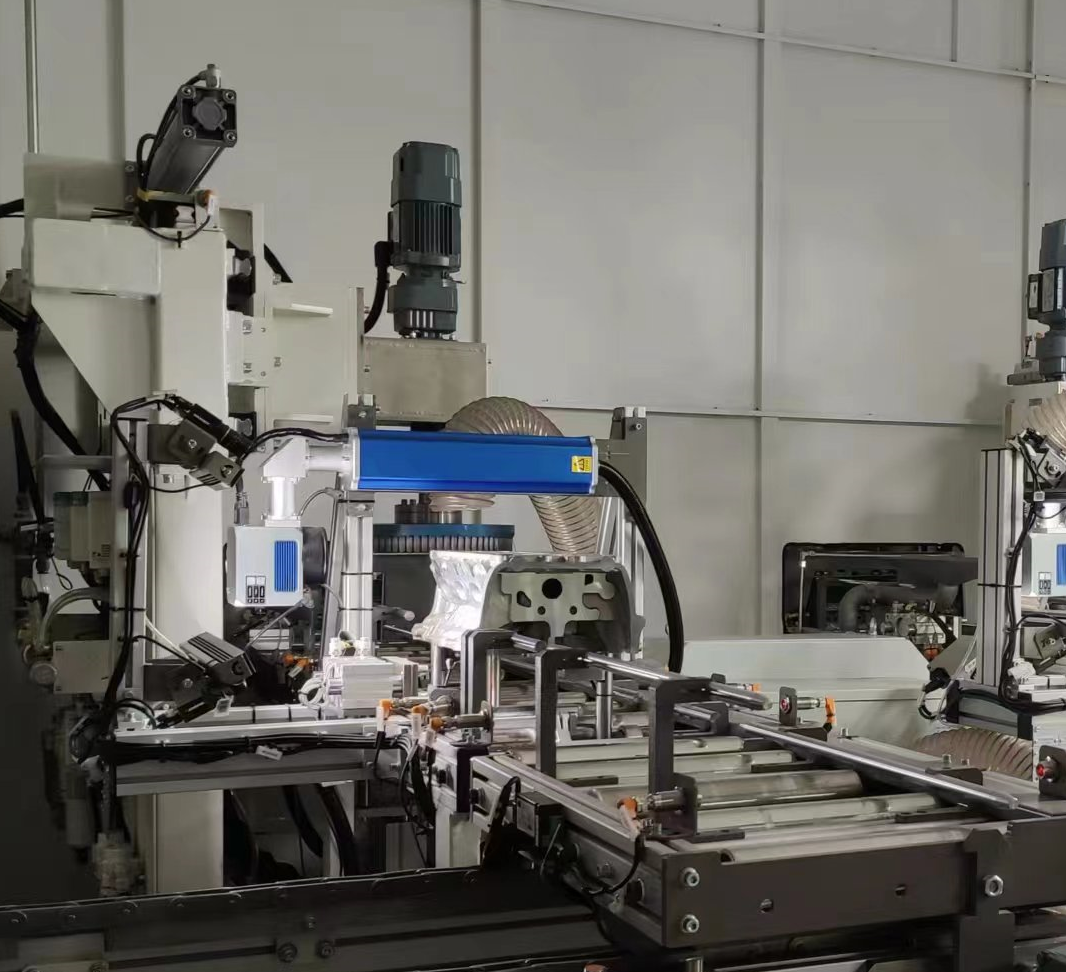

Equipment functions: Deburring of combustion chambers, identification & coding, inspection of defects on covers and intake surfaces, 3D dimensional inspection, inspection of defects on combustion chambers and exhaust surfaces, inspection of defects at front and rear ends, inspection of machined dimensions, and manual re-inspection.

Defect inspection of machined surfaces and rough surfaces: sand holes, gas holes, sand lumps, broken cores, misaligned boxes, smoke scorching, bumps, scratches, etc.

Dimensional measurement: Indirect measurement of combustion chamber and intake and exhaust port volumes.

Main functions: Batch detection of surface quality defects on workpieces, such as scratches, dents, sand holes, shrinkage porosity, missing corners, etc. The detection rate of defects with a size contour greater than 0.5mm exceeds 99.9%.

Equipment Specifications

Production cycle: 36S - 240S per piece (customizable to non-standard requirements)

Industrial cameras: 5 to 25 megapixels (48 units)

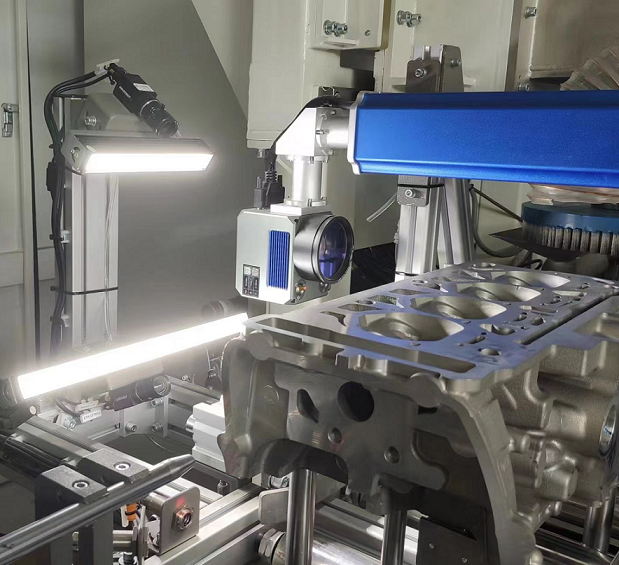

Light source: floodlight, combination strip light

Control System: Industrial Computer, PLC

Laser profilometer: Detection accuracy ±0.1mm

*The above product parameters are for reference only. For detailed information, please call for consultation.
