Applicable Industries: Commercial vehicles, passenger vehicles (including new energy vehicles), and other fields.

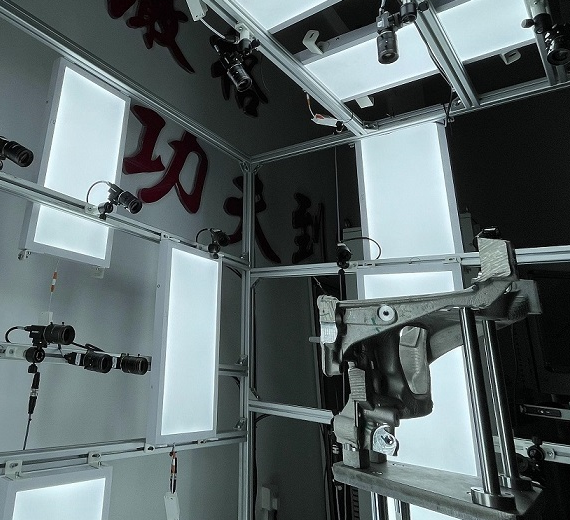

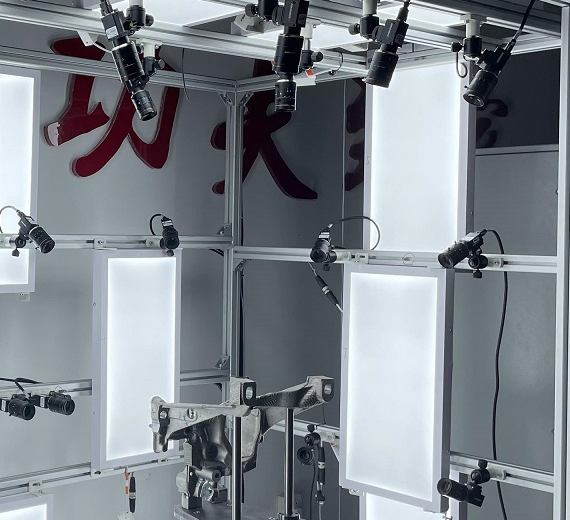

The equipment description: This precision visual measurement device is designed for the measurement of the shape and position dimensions of metal parts. It includes a visual imaging system, a two-dimensional image recognition system, a three-dimensional dimension measurement system, a user interaction system, a calibration system, and a statistical analysis system.

Project artifact information

Workpiece type: Metal parts

Size range in the length direction: 500 - 2000 mm

Size range in width direction: 500 - 1000 mm

Size range in thickness direction: 500mm - 500mm

Weight: < 20KG

Material: Aluminum, Iron

Surface: Metallic luster

Project indicator technology

Measurement accuracy: ±0.1mm

Beat: 10 - 20 seconds (detection time)

Processing errors: None missed.

Repeatability measurement accuracy: ±0.02mm

Three-coordinate correlation: ±0.1mm

Calibration cycle: more than 12 months

Calibration time: less than 30 minutes per person

Mechanical positioning requirement: greater than ±2.5mm

Detection range adjustment: Configurable by user

Model switching: Pre-fabricated in advance / Can be switched with one click to select

Statistical analysis functions: Traceback / Monitoring point measurement value statistics / Fault analysis / Report output
