Specification: 2.9m X 2.2m / 7m X 4m (Non-standard customization)

Applicable industries: Metal parts processing

Corresponding workpieces: Automotive parts represented by dashboard brackets (welded parts, stamped parts, cast parts, die-cast parts, and other metal irregular structural parts)

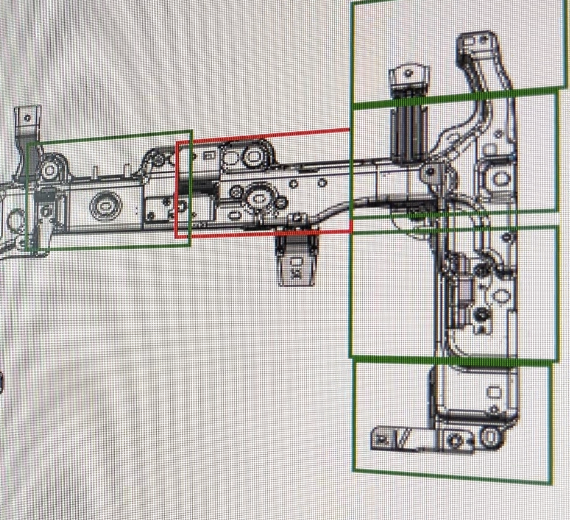

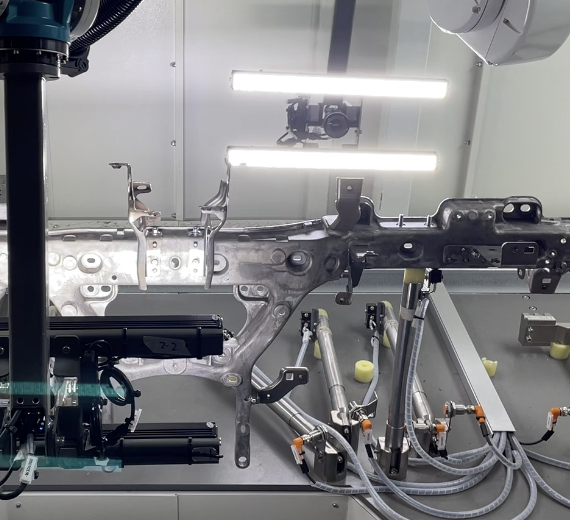

Equipment Description: It can be used for online detection of the parts assembled on the workpiece on the bracket, detection of the presence or absence of screws and nuts on the bracket, and detection of whether the insulation film on the holes of the product bracket has been removed. Inspection of the shape and position dimensions of the processed parts, inspection of the wrong or missing installation of components, and three-coordinate correlation ±0.1mm.

Equipment functions: Code reading, machine vision inspection, manual re-inspection, traceability, defect data analysis

Equipment Specifications

Production cycle time: 10 - 30 seconds (non-standard customization)

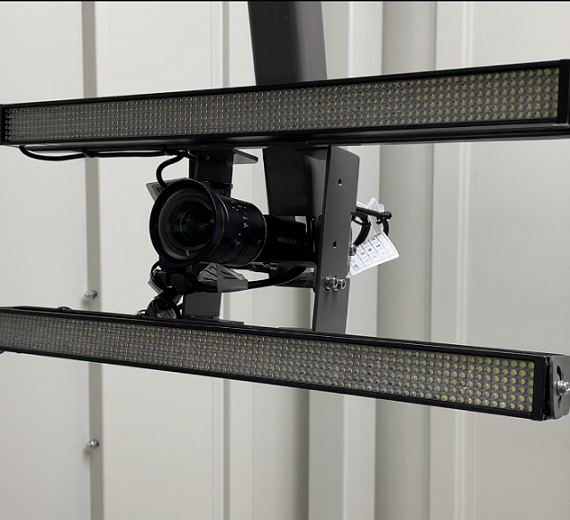

Industrial camera: 20-megapixel

Light source: Dual strip light

Control system: industrial control computer, network IO controller

*The above product parameters are for reference only. For detailed information, please call for consultation.
