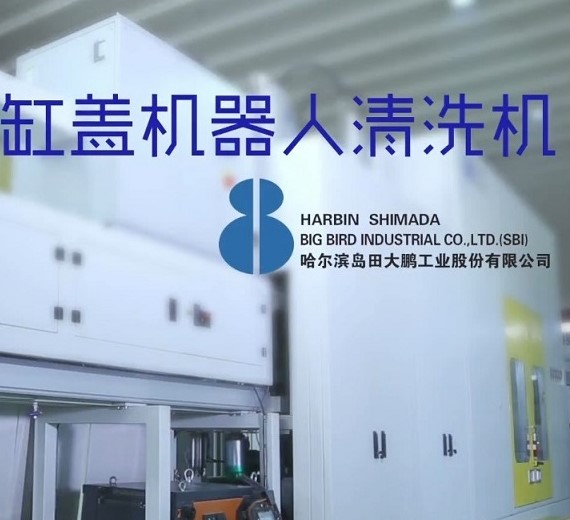

Diesel engine 6-cylinder head robot cleaning machine
Cycle time: 209 seconds
Loading and unloading: Loading and unloading by motorized roller conveyor

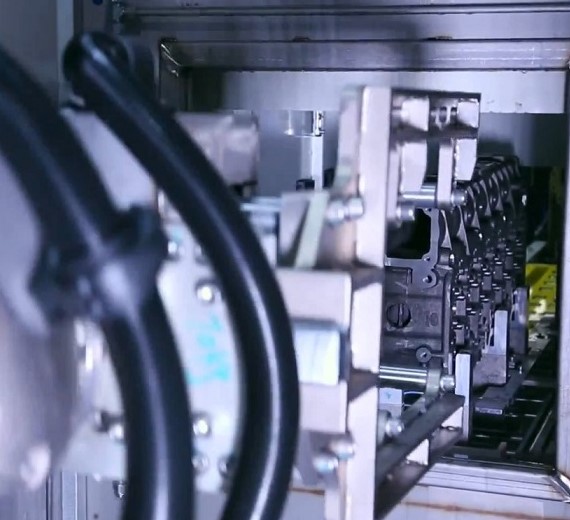

Cleaning: The robot holds the workpiece for turbulent flow cleaning, fixed-point positioning cleaning, oil passage insertion cleaning & water jacket pressure plugging cleaning (double workstations)
Drying: The robot holds the workpiece in place for air drying, secondary mechanical air drying, and vacuum drying.
Cooling: Cooling by cold wind
Cleanliness: For the main body including inner and outer surfaces, airways, camshaft holes and screw holes, etc. ≤ 220mg, particle size: ≤ 1.2mm; for waterways ≤ 700mg, particle size: ≤ 2.4mm.
*The above product parameters are for reference only. For detailed information, please call for consultation.
