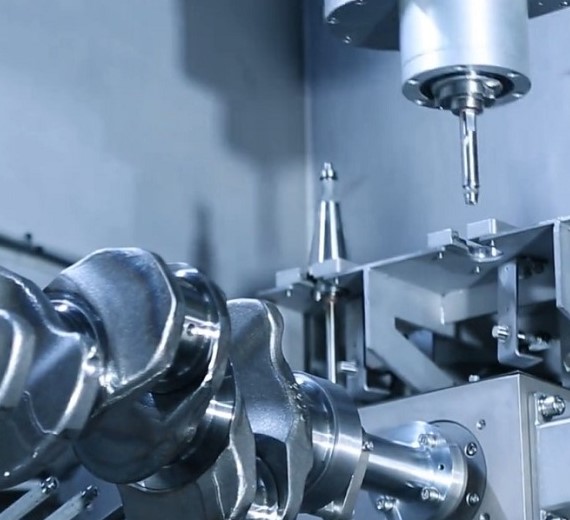

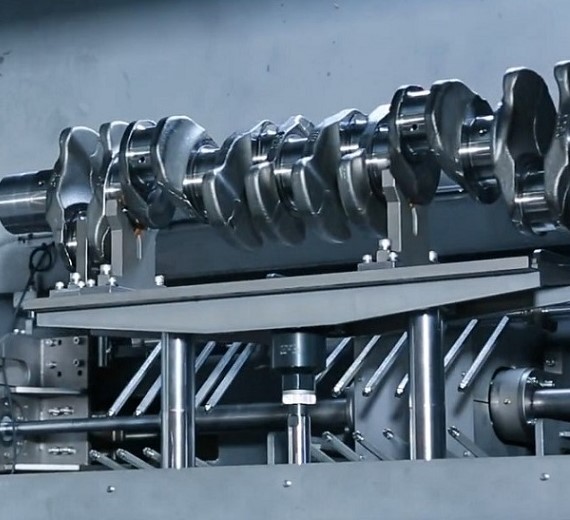

Diesel Engine Crankshaft Flexible Cleaning Machine
Suitable for four and six-cylinder crankshafts, high-pressure cleaning of main shafts, automatic nozzle changing, and compatible with multiple types.
Specification: 11m X 9m X 4.5m
Rhythm: 180 seconds per piece

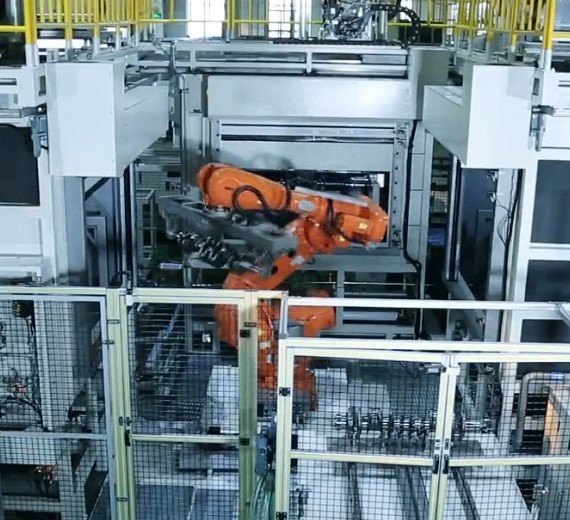

Loading: Truss mechanical arm loading, 6-axis robot transfer
Cleaning technology: Overall ultrasonic cleaning +定点 high-pressure water cleaning + rinsing
Drying: Dehydration, vacuum drying
Cooling: The temperature of the workpiece after cooling by air conditioning should be ≤ room temperature ± 5℃.
Cleanliness: Overall ≤ 30mg
Dryness: No water marks remain on the shaft surface or in the holes.
Particle size: ≤ 600 μm
*The above product parameters are for reference only. For detailed information, please call for consultation.
