Cycle time: 118 seconds

Loading: Loading with workpieces on pallets

Deburring: The robot holds the workpiece and uses a brush to remove burrs from all surfaces.

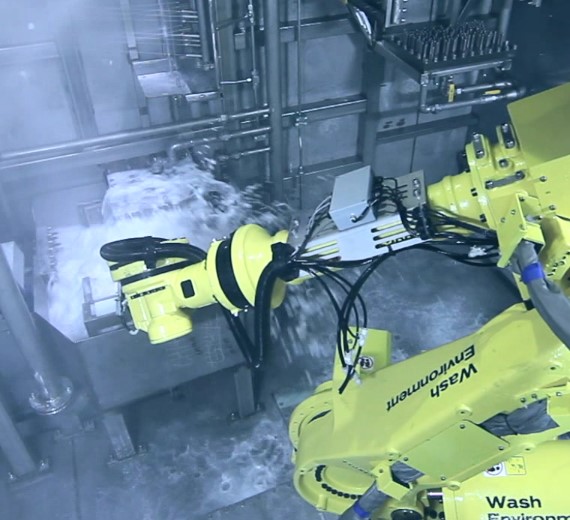

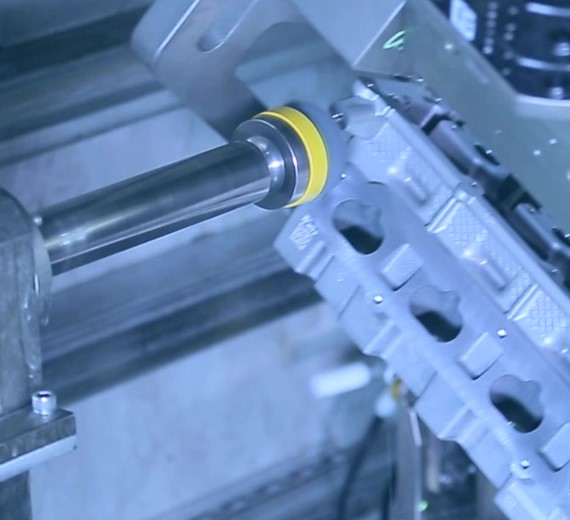

Cleaning: The robot holds the workpiece. The water jacket is blocked and cleaned under pressure, turbulent flow cleaning is carried out, fixed-point positioning cleaning is performed, and the main oil passage nozzle is inserted for high-pressure cleaning at 8MPA.

Drying: The robot holds the workpiece for drying with compressed air and vacuum drying.

Cooling: Air conditioning for temperature reduction

Cleanliness: Overall ≤ 5mg

Dryness: No water marks visible to the naked eye

Workpiece temperature: ≤ Room temperature ± 5℃

*The above product parameters are for reference only. For detailed information, please call for consultation.
