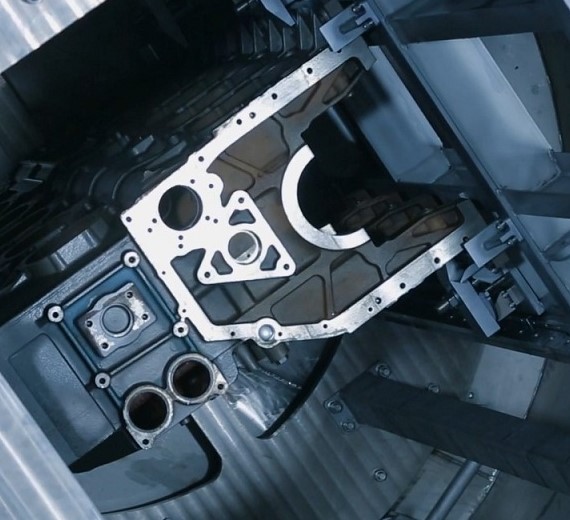

Cylinder Block Types: In-line 6-8, V12, V16, MTU V20

Specification: 10m X 25m X 3.5m

Rhythm: 30 minutes per piece

Workpiece weight: The maximum weight of the cylinder block is 2000 kg.

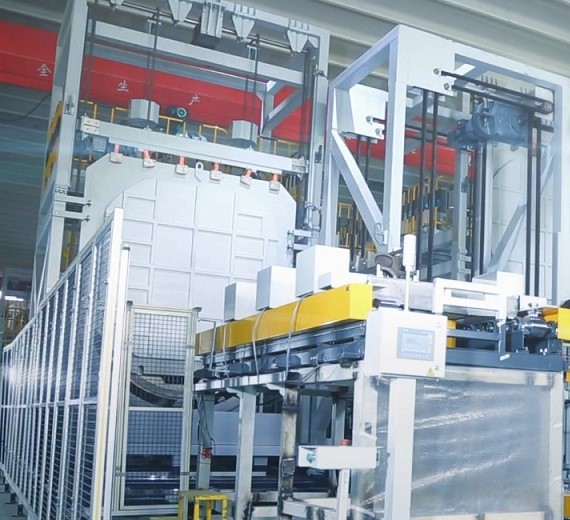

Loading: Material lifted by crane, conveyed by roller conveyor with pallets moving laterally/longitudinally

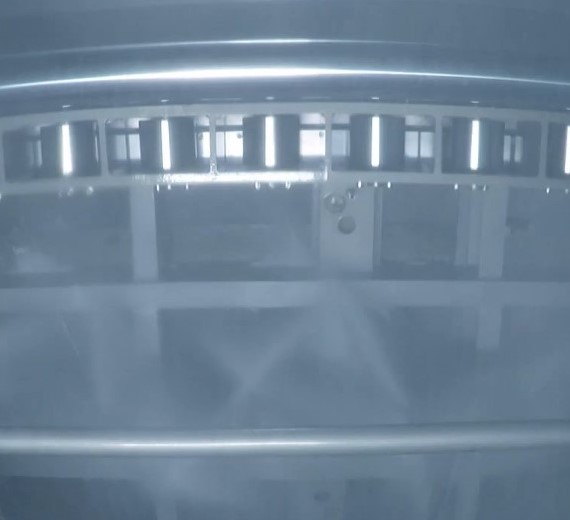

Cleaning: Turbulent overall cleaning & high-pressure targeted cleaning & oil passage pressure plugging cleaning & rotary vacuum drying

Cleanliness: ≤ 3000 mg

Particle size: ≤ 1000 μm

Drying method: Clamping, flipping and water control, vacuum drying

Drying degree: No water marks remain on the surface or inside the holes.

Material handling: The cylinder block is unloaded through a motorized roller conveyor and a lifting device.

Rotation angle: ± 360 degrees

*The above product parameters are for reference only. For detailed information, please call for consultation.
