Applicable industries: Various powertrain components for automotive and construction machinery, such as gasoline and diesel engines and transmissions, as well as other high-precision industrial cleaning and deburring fields.
Corresponding workpieces: Various cylinder blocks, cylinder heads, crankshafts, camshafts, connecting rods, housings, valve bodies, shaft gears, and other components in the powertrain and other fields that have high cleanliness standards and deburring requirements.

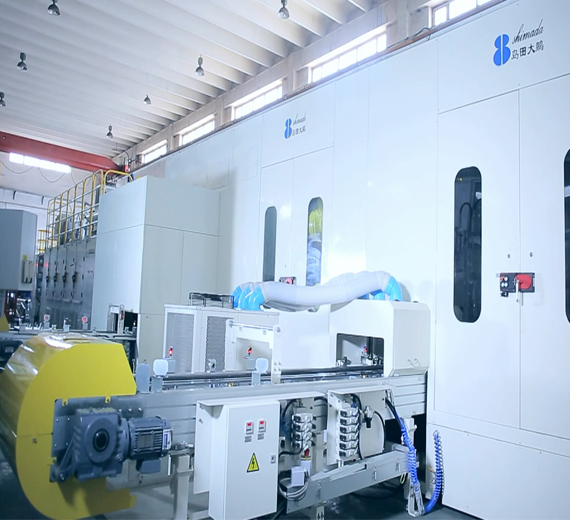

Equipment type: Six-axis multi-manipulator compound
Equipment description: Two-process composite, suitable for mass production lines or stand-alone production.

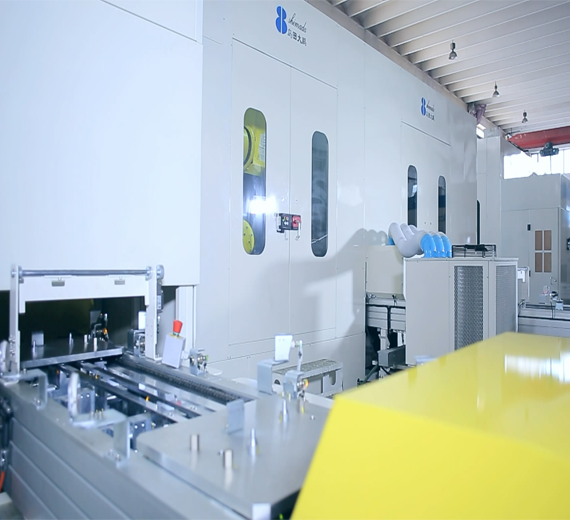

Equipment features: Self-made fixture brushes, tray conveyance, high precision in cleaning and deburring, high flexibility and compatibility, low failure rate, easy maintenance, convenient for modification, compact structure, and low operating cost.

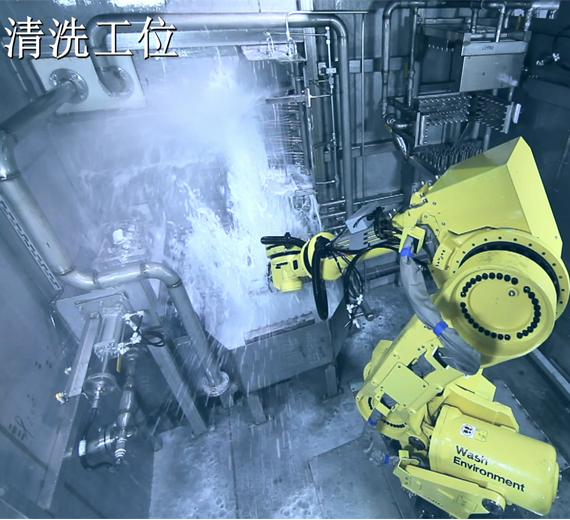

Process description: Deburring, turbulence, scanning, positioning, high-pressure water cleaning & deburring, rinsing, air drying, vacuum drying, cooling and temperature reduction
Equipment Specification Introduction
Specification: 10m X 7m X 4.5m
Beat: Wide adjustable range from 20 seconds to 20 minutes
Cleaning technology: Turbulent overall cleaning +定点 high-pressure water deburring + rinsing + brush & tool deburring
Features: Dual-process compound, suitable for all types of parts and components, and the cleaning program is adjustable.
Cleaning accuracy: ≤ 1 - 5 mg
Granularity: Main oil passage ≤ 600 μm
Cleaning pressure: 0.5 to 60 MPa
Cleaning accuracy: 1 to 5 mg or less for the main oil circuit.
Drying methods: Compressed air blow-drying, vacuum drying
Cooling methods: water cooling, air conditioning air cooling
Filtering methods: Backwash automatic sludge discharge filtration, bag filtration, paper belt filtration
Filtering system: 1-3 stage filtration
Manipulator brands: FANUC, ABB, etc.
Control system: Siemens, Mitsubishi
Noise: 75 dB
*The above figures are for reference only. For details, please consult your local sales representative.
