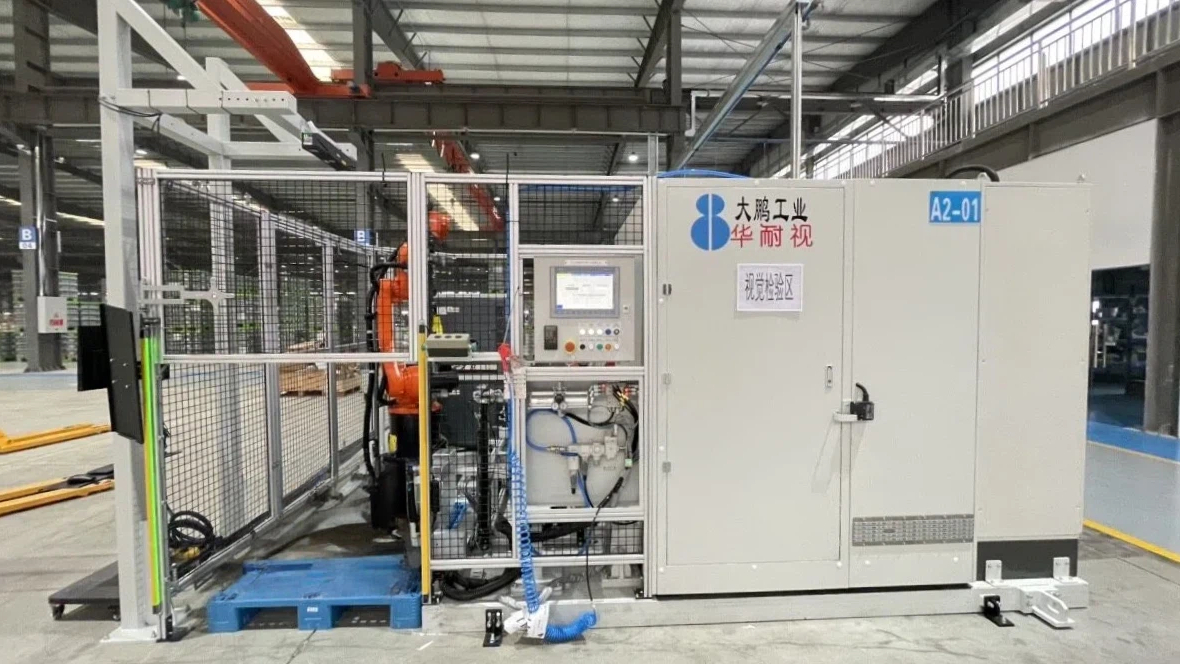

In the field of automotive parts manufacturing, dimensional inspection is a crucial step in ensuring product quality. The small parts dimensional inspection equipment for automotive structural components, jointly developed by Harbin Shimada Big Bird Industrial Co., Ltd.and CN ISEE（Harbin）Intelligent Inspection Tech Co.,Ltd., relies on advanced visual inspection technology and automated control solutions. It is specifically designed for the inspection of parameters such as hole position, hole diameter, and distance of small automotive parts, achieving a fully automated, data-driven, and intelligent upgrade of the inspection process.

Core advantages

High precision + high efficiency: It can meet the inspection requirements of over 60 types of small automotive parts. It only takes 10 seconds to inspect 32 items at a time. It adopts high-pixel industrial cameras and 3D guidance cameras, combined with a professional visual inspection system, to accurately identify hole position deviations, replacing manual visual inspection and reducing human errors. When an abnormality is detected, it automatically alarms and marks the problem location, facilitating quick handling.

Flexible configuration: Supports manual addition, editing and copying of inspection definitions for multiple types of workpieces, and can configure inspection parameters as needed. It can flexibly create inspection hole information, adapting to the multi-variety and small-batch production mode of the production line.

Full-process data traceability: Automatically retain detection images and results, support multi-condition search, can print detection reports, import and export relevant information, providing data support for quality analysis and production optimization.

Intelligent data analysis: Equipped with built-in statistical query functions, it generates statistical reports, automatically calculates key data and process capability indices, visually presents the distribution of test results, and controls production stability

Application value

Reduce costs and increase efficiency, save labor costs, and improve inspection efficiency; ensure quality, reduce the risk of defective products flowing out; data-driven, facilitate quality traceability and production optimization, and enhance the core competitiveness of enterprises.

Automotive structural component small parts dimension inspection equipment, with technological innovation empowering manufacturing, creates an efficient, precise and intelligent quality inspection solution.
